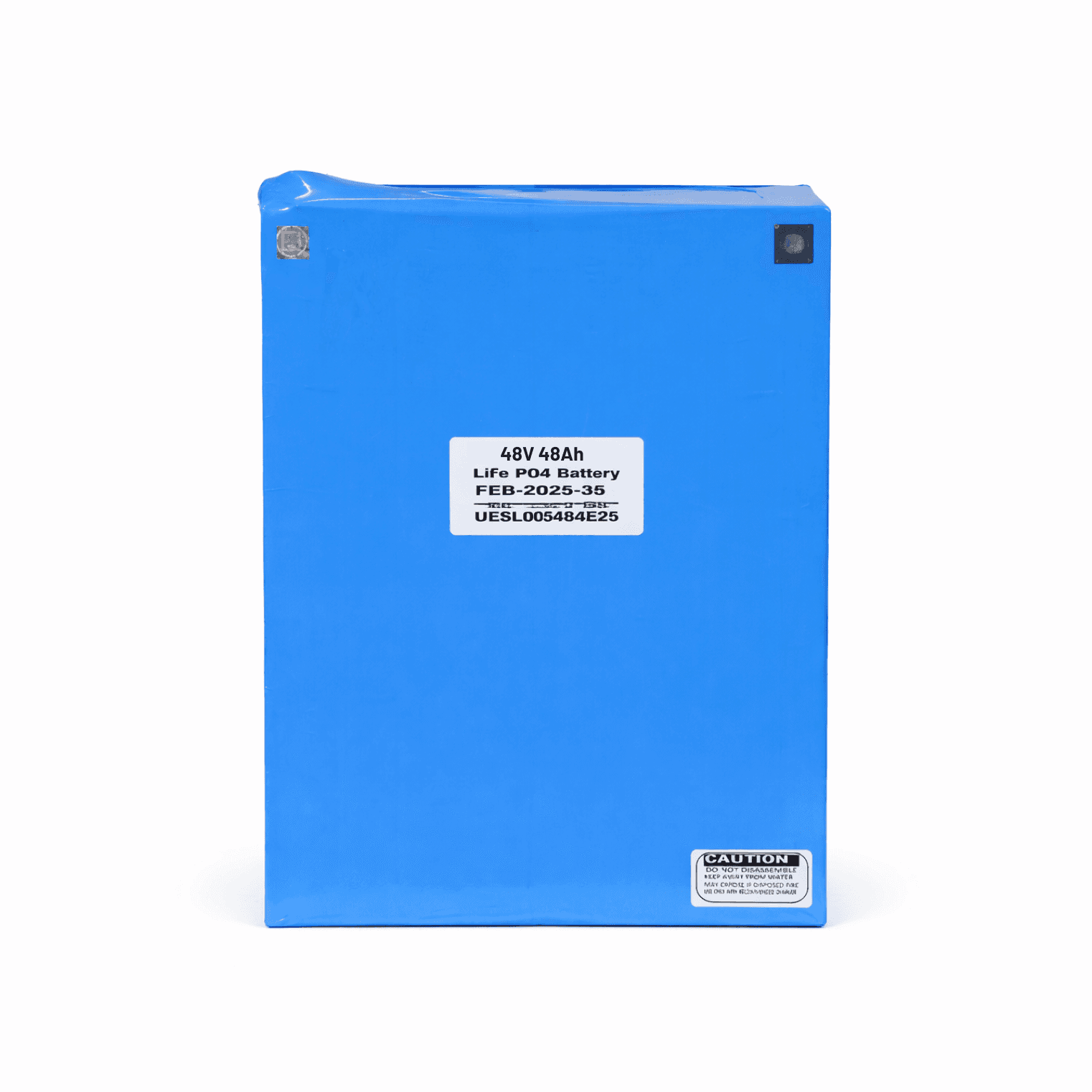

The summit of the soft pack catalogue. The 48V 48Ah LFP battery stores 2,304 watt-hours. Nearly two and a half kilowatt-hours in a flexible pouch cell format. This is the absolute maximum that Uttam Electric achieves in the soft battery pack product line. There is nothing beyond this.

At 18.5 kg and 265 x 265 x 145 mm, the pack reaches a symmetrical square footprint. This geometry distributes weight evenly across mounting points and provides the most stable profile for vehicle integration. The 145 mm height allows under-seat and in-frame mounting across a wide range of vehicle platforms.

Forty-eight ampere-hours on 48 volts. The numbers mirror each other. The performance they represent is exceptional. Range exceeds 80 km for standard e-cycle configurations. Heavy cargo applications still achieve 50+ km. Electric wheelchair platforms gain weekly rather than daily charging cycles.

The 6000 mAh LFP pouch cells are assembled in the most complex configuration in the soft pack family. The BMS manages 16 series groups with multiple parallel strings each. Cell balancing runs continuously during both charge and discharge. Temperature monitoring covers every zone. Fault isolation prevents any single cell event from affecting the wider pack.

IP64 rated. 24 to 36 month warranty with repair coverage. Custom dimensions for OEM integration. This is the product that defines the upper boundary of soft pack technology at Uttam Electric. Every watt-hour. Every safety feature. Every engineering lesson learned from the entire catalogue converges here. Made in India. Made to lead.

TECHNICAL SPECIFICATIONS
