PRODUCT OVERVIEW

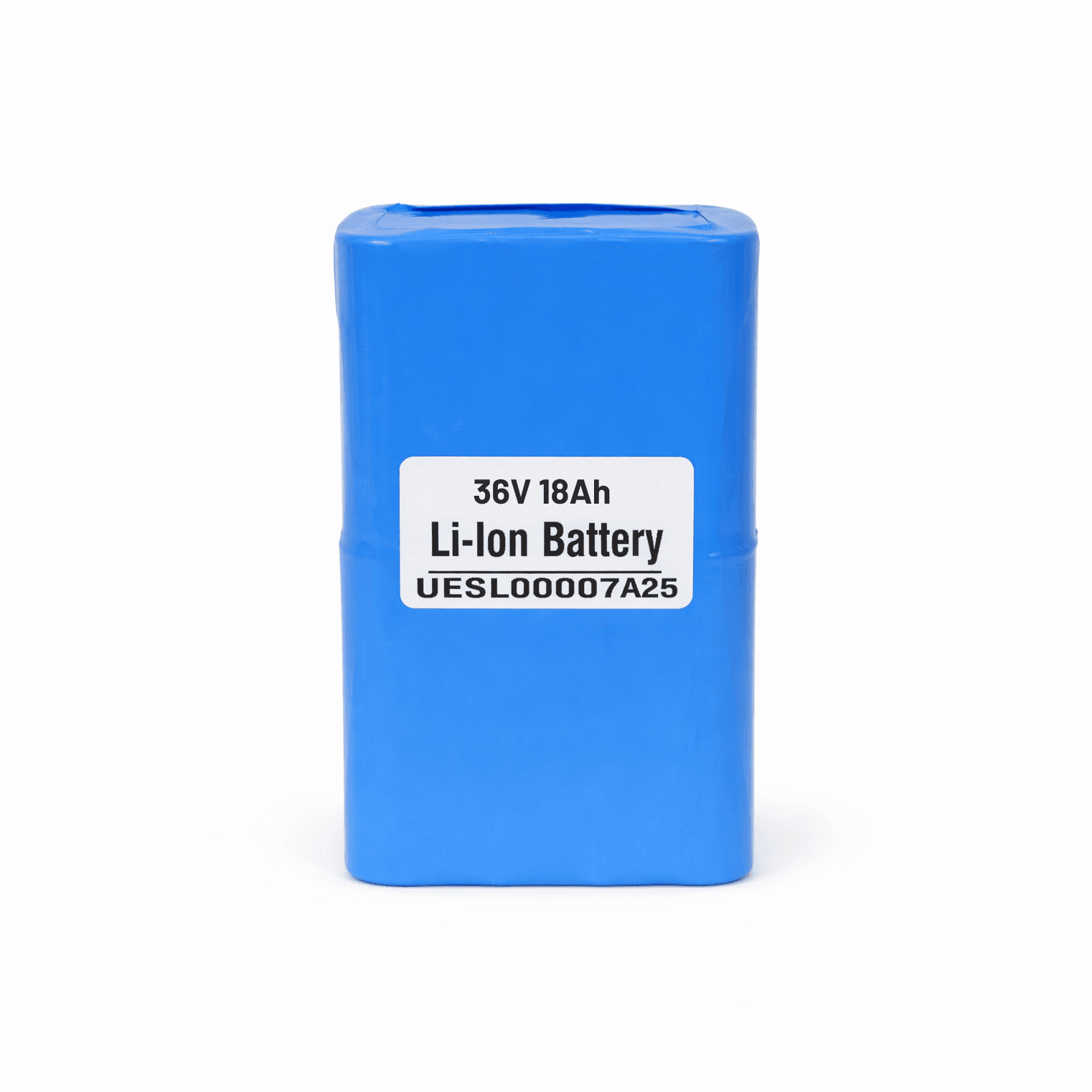

Commute-ready capacity on the 36V platform. The 18Ah variant stores enough energy for daily round-trip journeys that cover meaningful urban distances. Pedal-assist e-cycles with 36V drive systems draw modest current from the battery, and 18 ampere-hours sustains that draw across the kind of distances that make car trips genuinely replaceable.
The 320 x 100 x 75 mm housing at 5 kg is narrower than the 12Ah variant, a consequence of different internal cell stacking geometry optimised for the higher cell count. This narrower profile benefits installations where lateral clearance is restricted, such as frame-internal battery compartments on compact e-cycle designs.
Five BMS protections—over-voltage, under-voltage, overcharge, deep discharge, temperature—operate in parallel. IP65 certification manages environmental conditions. The 24 to 36 month repair warranty applies. Custom dimensions serve varied OEM architectures. Engineered in India for the daily commuter who is ready to leave the car behind.
TECHNICAL SPECIFICATIONS
SPECIFICATION | DETAILS |
Voltage | 36V |
Capacity | 18Ah |
Battery Chemistry | LFP |
Cell Type | 6000 mAh Pouch |
Dimensions | 320 x 100 x 75 mm |
Weight | 5 kg |
Protection Features | Over-voltage | Under-voltage | Overcharge | Deep Discharge | Temperature |
IP Rating | IP65 |
Warranty | 24/36 Months (Repairing) |
Custom Dimensions | Available |
Application | E-Cycle / E-Wheelchair |
Country of Manufacture | India |
