PRODUCT OVERVIEW

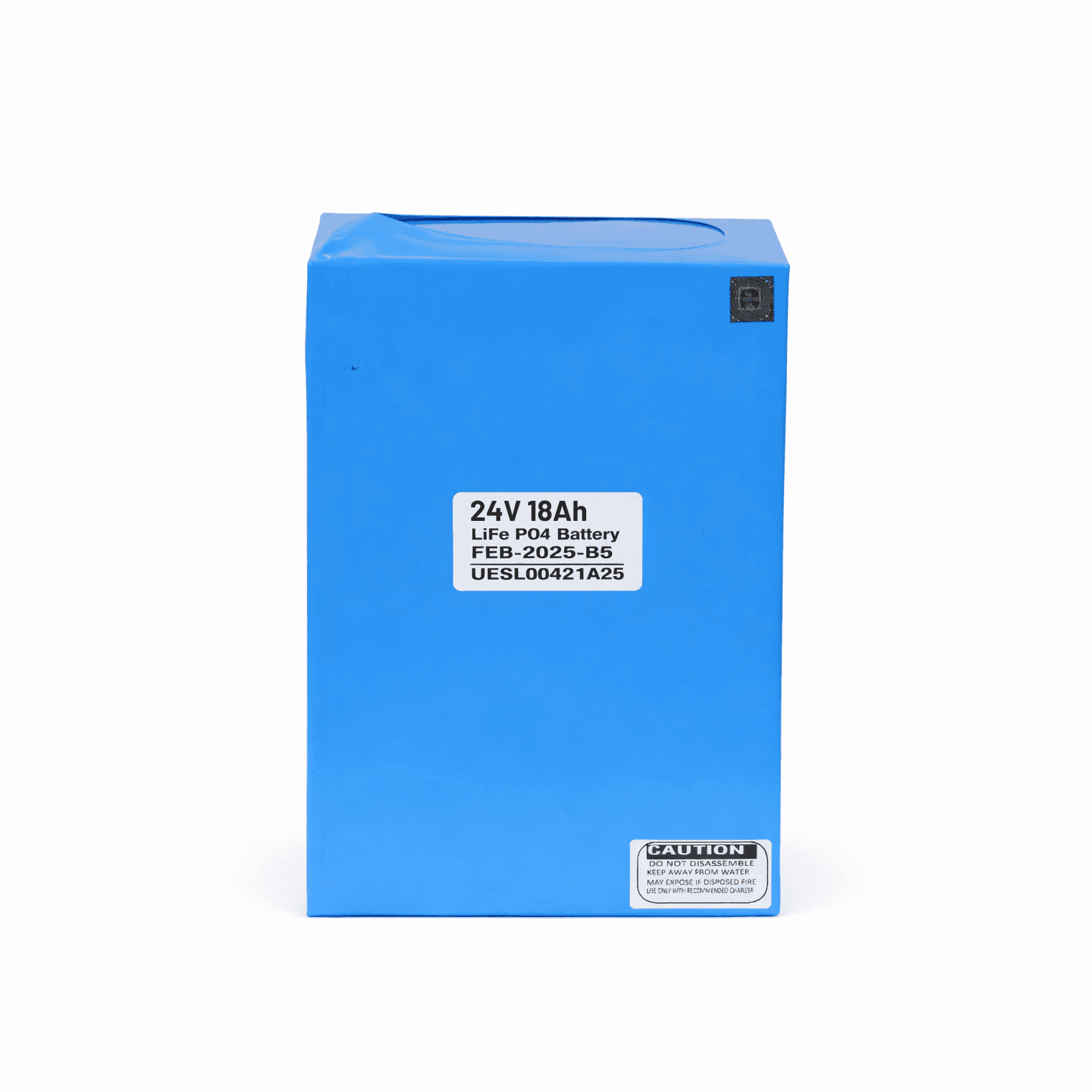

Greater range on every charge cycle transforms an electric cycle from a neighbourhood vehicle into a genuine commuting tool. The 24V 18Ah LFP Soft Battery Pack provides the energy reserves that make daily round-trip commutes practical. Eighteen ampere-hours covers the distance gap between recreational use and purposeful transportation.
The 220 x 135 x 75 mm housing at 3.7 kg integrates into standard e-cycle frame tubes and wheelchair battery trays. The soft pack format avoids the sharp corners and rigid edges of metal-cased alternatives, reducing the risk of frame abrasion and simplifying mounting with flexible strapping systems. The 6000 mAh LFP cells maintain their rated capacity across hundreds of deep discharge cycles.
Over-voltage, under-voltage, overcharge, deep discharge, and temperature protections function as five concurrent BMS layers. IP65 certification handles outdoor riding conditions. The 24 to 36 month warranty covers repair. Custom dimensions are offered for non-standard frame designs. Assembled in India for the pedal-assisted and powered mobility devices reshaping urban commuting.
TECHNICAL SPECIFICATIONS
SPECIFICATION | DETAILS |
Voltage | 24V |
Capacity | 18Ah |
Battery Chemistry | LFP |
Cell Type | 6000 mAh Pouch |
Dimensions | 220 x 135 x 75 mm |
Weight | 3.7 kg |
Protection Features | Over-voltage | Under-voltage | Overcharge | Deep Discharge | Temperature |
IP Rating | IP65 |
Warranty | 24/36 Months (Repairing) |
Custom Dimensions | Available |
Application | E-Cycle / E-Wheelchair |
Country of Manufacture | India |
